Description

Tikka M-series trigger rebuild kit

Compatability

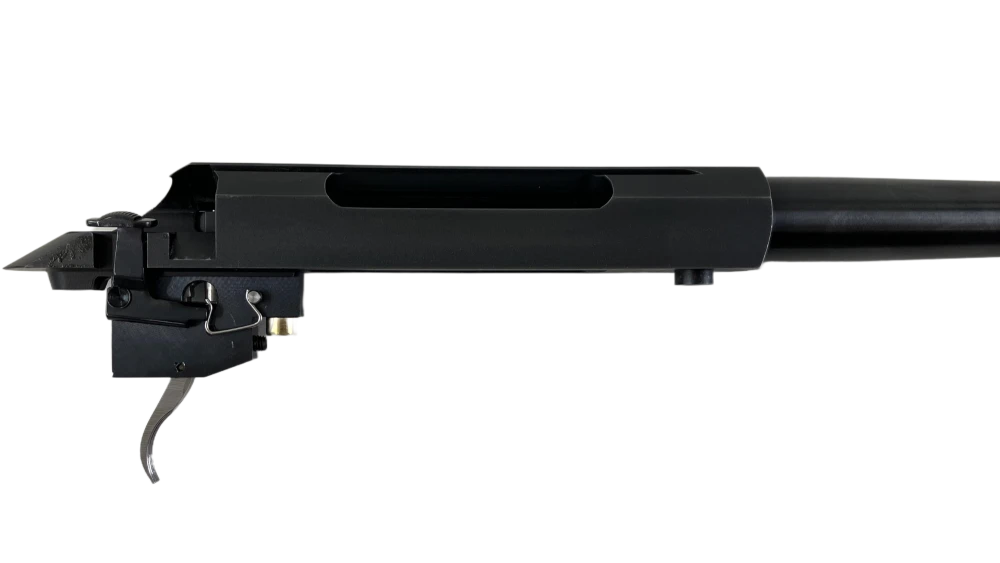

This Tikka Tikka M-series trigger rebuild kit is compatible with Tikka 558, 590, 595, 658, 690 and 695 rifle models.

Description

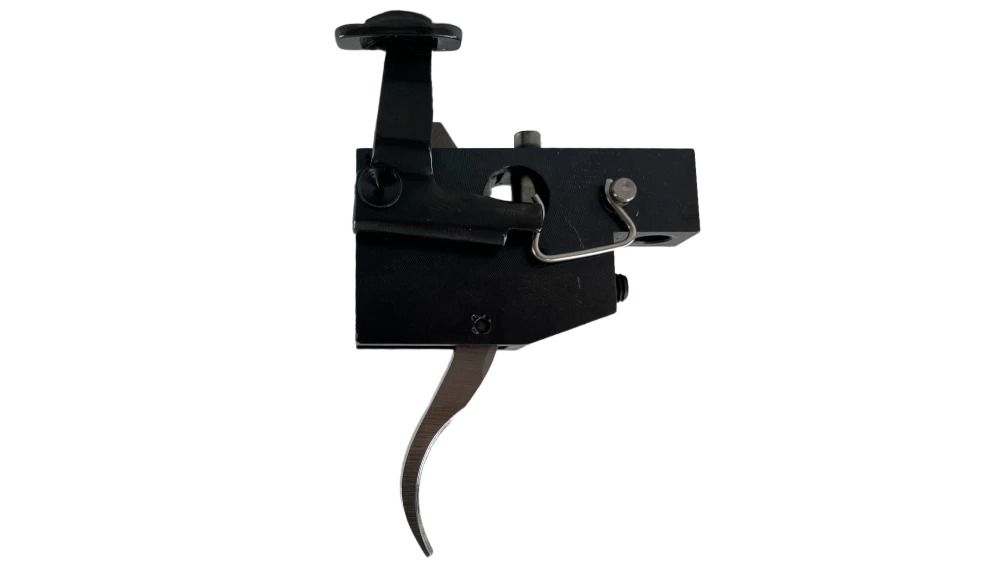

This Tikka M-series trigger rebuild kit is a 4 piece kit. It refurbishes your original Tikka trigger and will safely bring your trigger down to a crisp ~925 gram pull weight from the original pull weight that we measure at ~1700 gram (when the grub screw is set at the original factory position).

This trigger spring kit produces a pull weight that is consistent, safe and will break cleanly every time* when installed correctly**. Further improvements are possible by polishing the internal trigger components with varying grits of rouge compounds on a sisal wheel / buff. The spring is made from piano wire that has been electroplated for corrosion resistance and the spring plunger has been CNC machined from 17-4PH stainless steel.

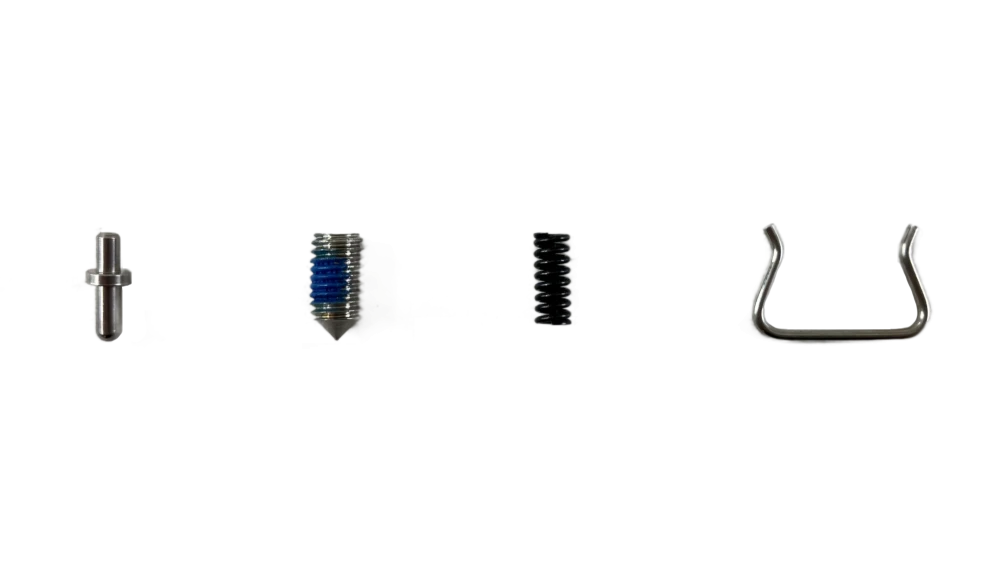

Inclusions Tikka M-series trigger rebuild kit:

• Trigger spring (+/- 925 gram): coiled from piano wire that has been electroplated for corrosion resistance
• Spring plunger: CNC turned from 17-4PH stainless steel
• Grub screw: CNC turned from 17-4PH stainless steel with a thread locking compound applied
• Safety lever spring: fabricated from stainless steel wire

* Results may vary slightly between individual rifles and trigger pull gauges. Our pull weight is measured on an original Tikka 690 trigger using an RCBS gauge.

** We supply a replacement spring and spring plunger only. If unsure on installation, we highly recommend having a qualified and competent gunsmith do the job. Slight variations between different rifles may result in an unsafe trigger when fitting these springs. Always ensure the rifle is unloaded before commencing work and test trigger function extensively upon reassembly whilst rifle is unloaded. Slam closing the bolt and dropping the rifle onto the buttpad (both whilst unloaded) is imperative. Adjust the grub screw until a safe trigger is achieved.
