Description

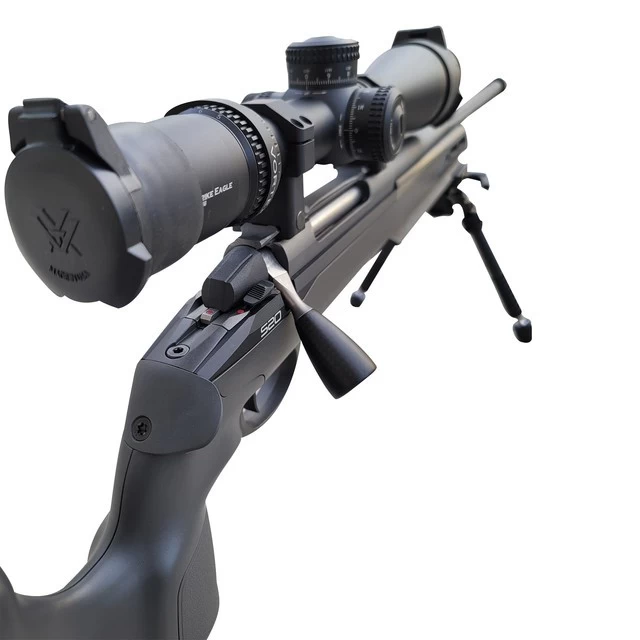

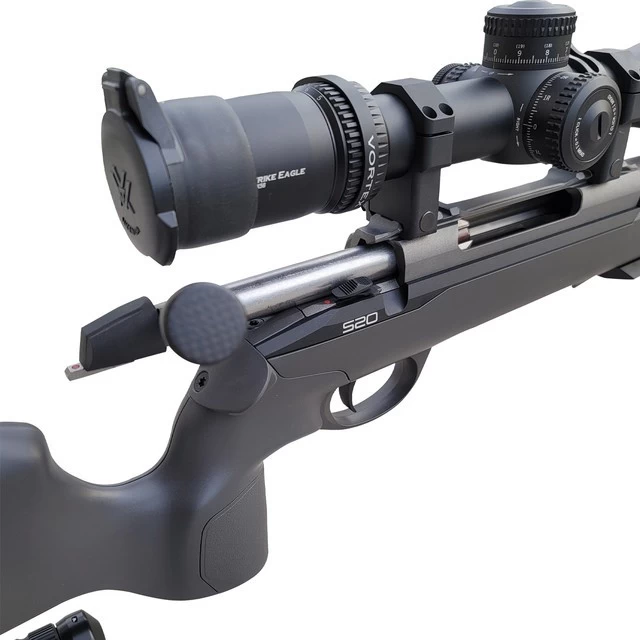

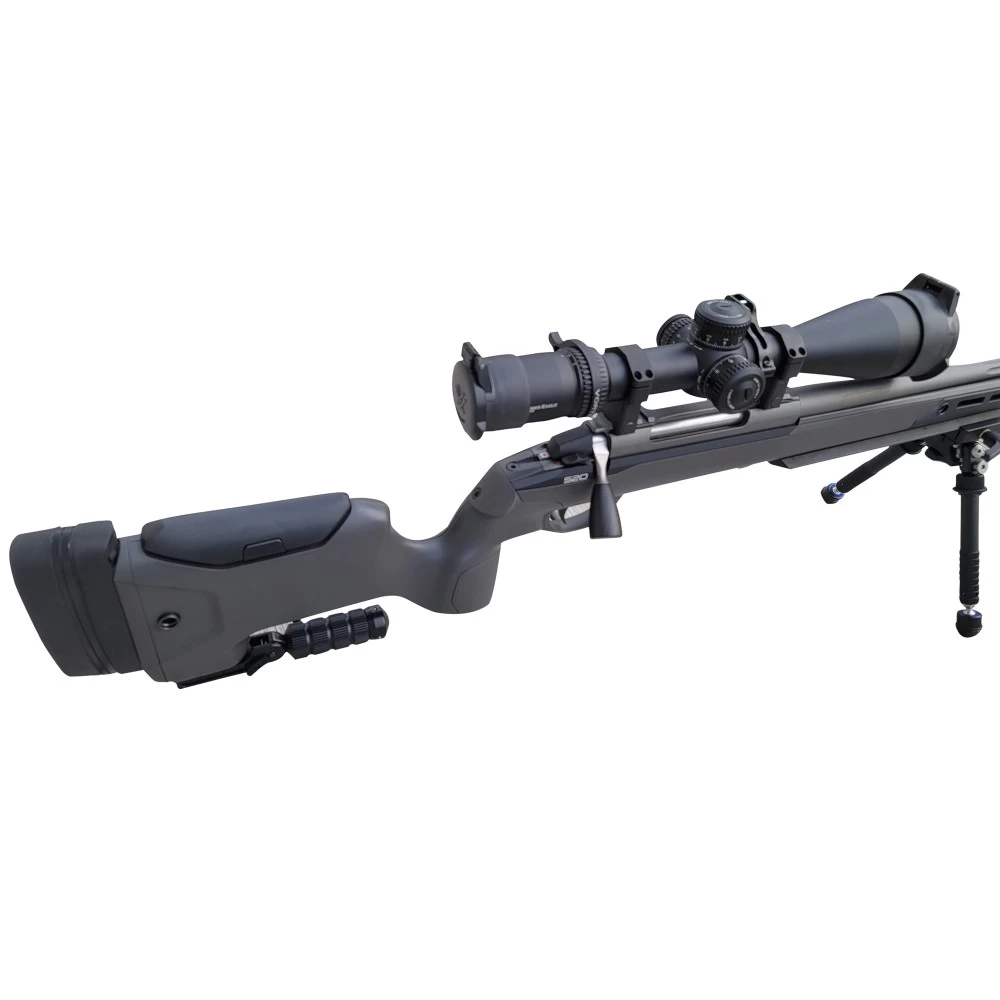

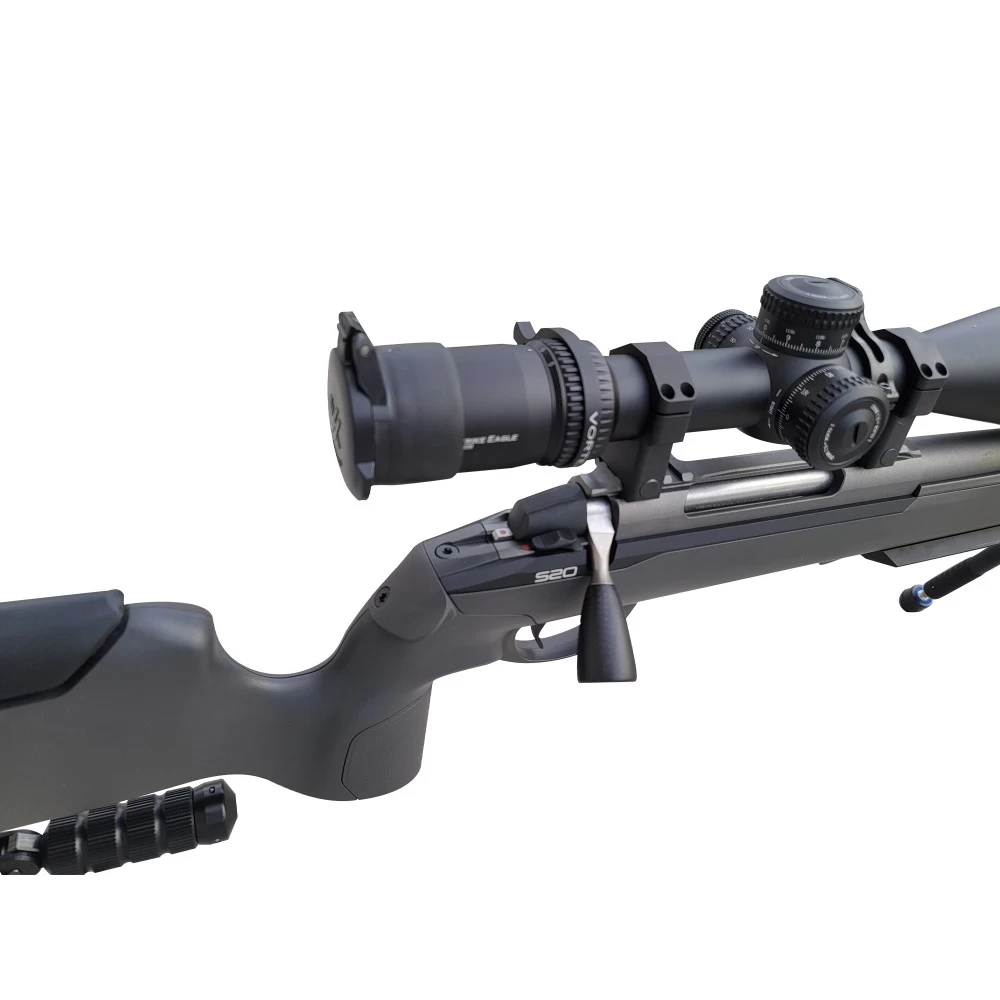

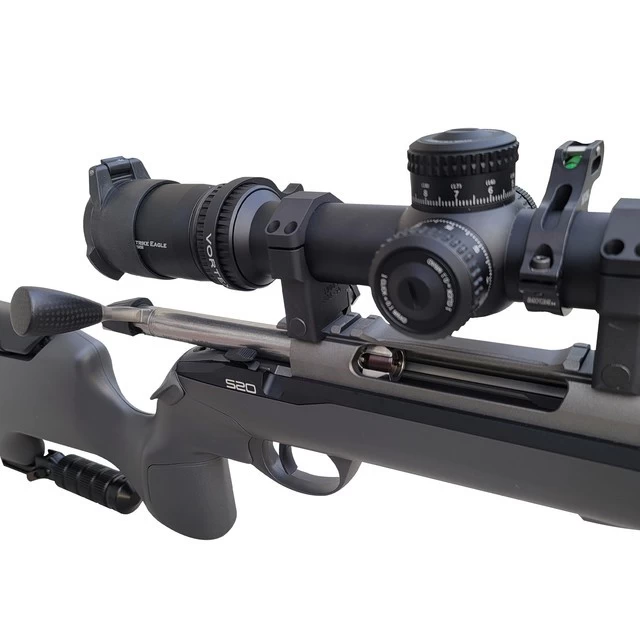

Sako S20 – titanium bolt handle

The Sako S20 titanium bolt handle is a direct, screw-in replacement for your original Sako S20 bolt handle. The Sako S20 titanium bolt handle is CNC machined from Grade 5 titanium alloy.

The handle consists of two pieces:

• a glass bead-blasted titanium sleeve that matches the external profile and finish of the original factory handle
• a titanium fastener with the common 5/16″x24 TPI thread to secure the handle in the bolt body.

Our handle fits all Sako S20 models in both left and right handed configurations.

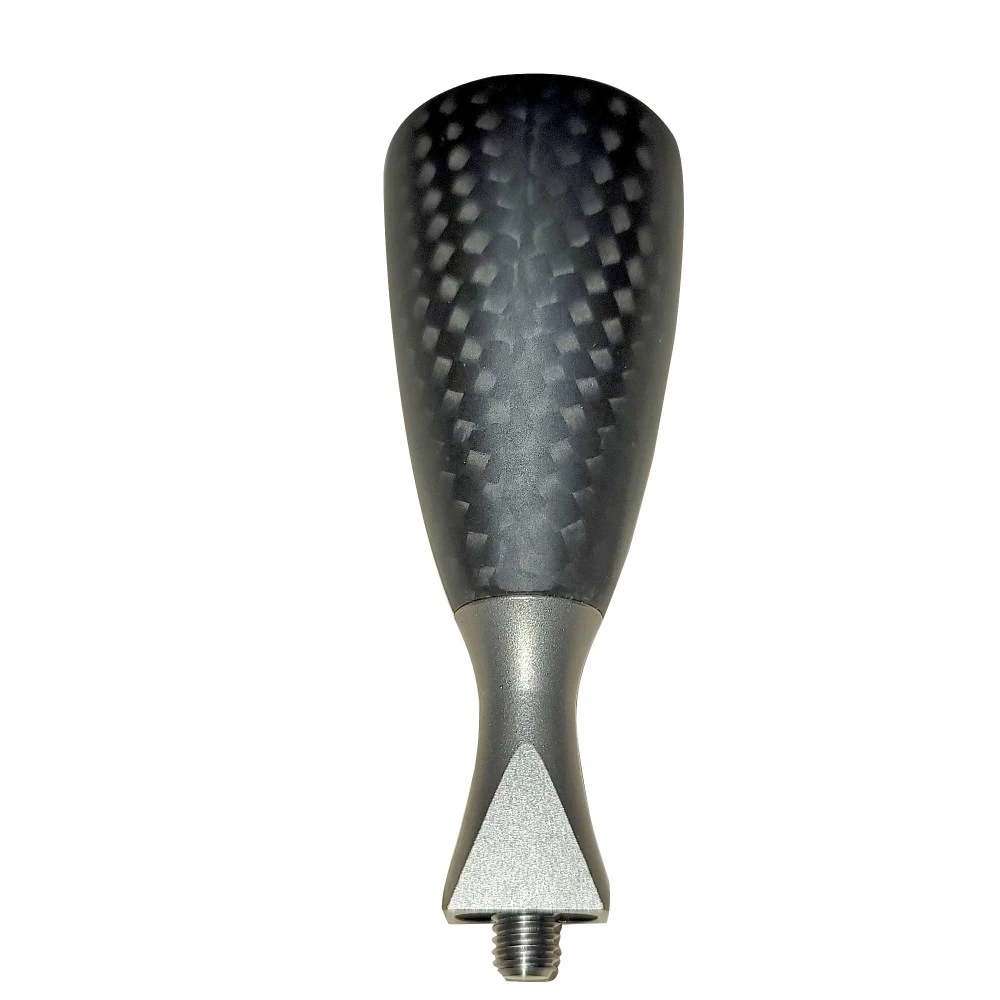

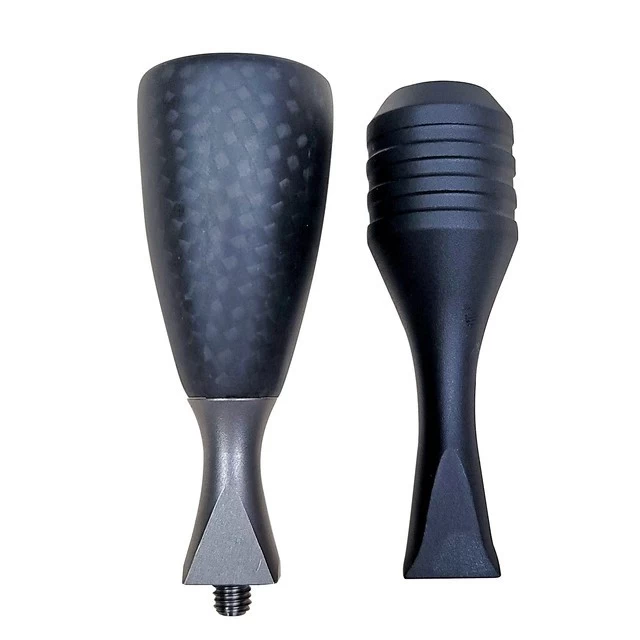

A Carbon Fibre Tactical bolt knob is included with the handle.

Fitting Guide

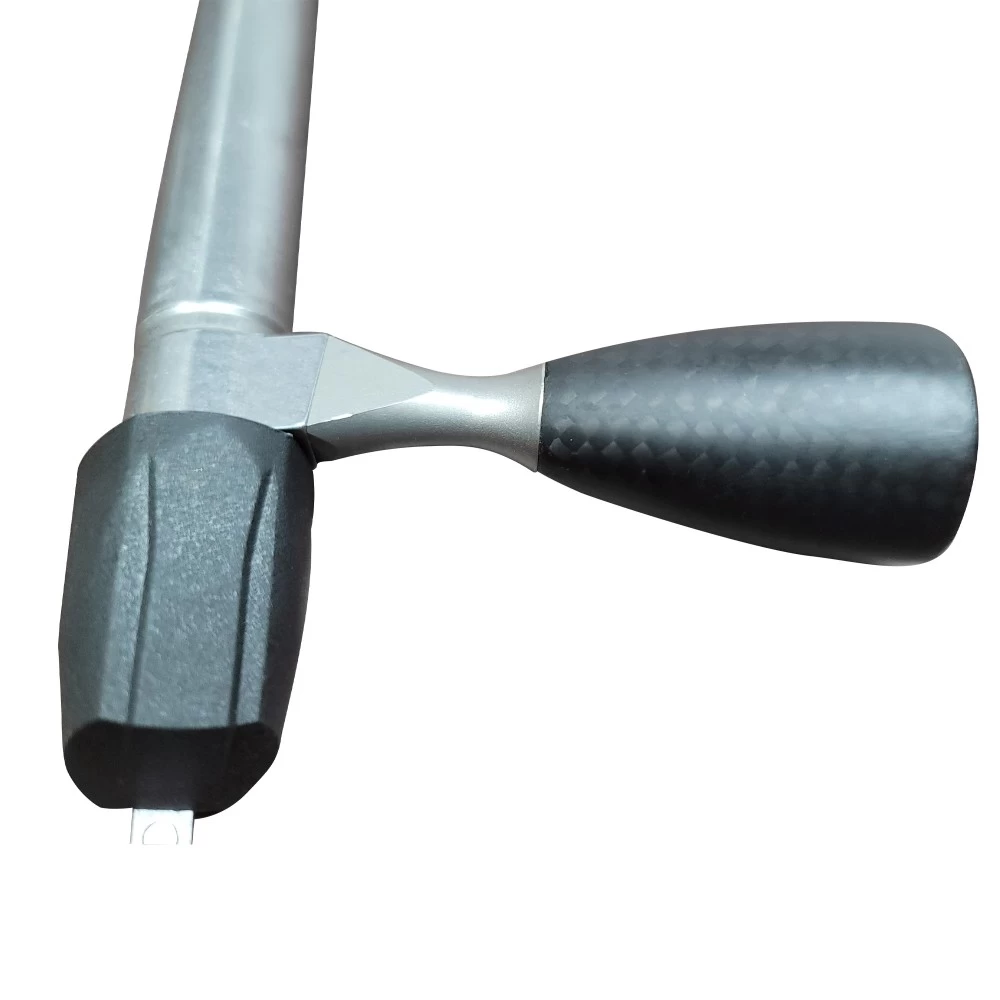

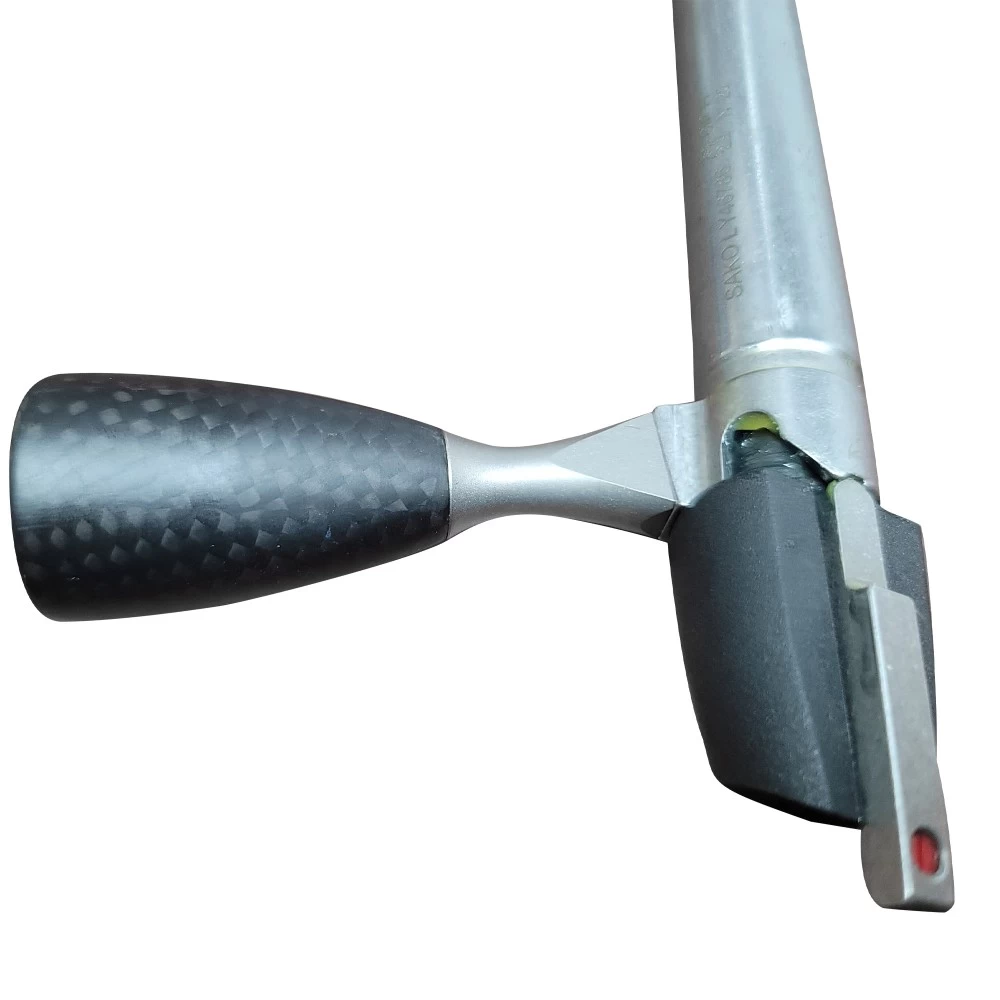

The factory handle of the Sako S20 is retained in the bolt body by a cap head hex fastener. Our handle uses a custom titanium grade 5 fastener with a tapered and threaded end for the bolt knob to screw onto (5/16″x24 TPI). A profiled titanium sleeve is held captive between this bolt knob and the bolt body once assembled.

The Sako S20 factory handle can be removed by removing the factory knob first. Then you can use a hex key to unscrew the fastener that retains the factory handle to the bolt body.

The titanium handle can then be installed by inserting the fastener through the sleeve. This can be done with the hex socket end facing away from the bolt body. The smaller threaded end of this fastener screws into the bolt body firmly (using either an M4 or 3/32″ hex key).

Once the titanium handle is firmly secured to the bolt body, the bolt knob can then be screwed onto the end of the handle.

Notes

• If using a thread locking compound to attach the bolt handle or bolt knob, we don’t recommend using anything stronger than purple Loctite (222) or equivalent
• If using a stronger thread locking compound, be very careful never to overheat the bolt if using a propane torch to remove the handle in the future.
